ECO-WORTHY Cubix100 Pro Review: Honest Pros & Cons
Last winter, I stood in my workshop staring at a dead inverter readout for the third time that month. The batteries were brand new — flooded lead-acid, 48-volt bank, supposedly good for 5,000 cycles. But the temperature had dropped to minus six overnight, and my charge controller had already pulled the plug. No charging below freezing, the manual said, and the batteries were too cold to accept current. I needed a bank that would actually work in the cold, that I could monitor remotely, and that wouldn’t die after two seasons of winter. That sent me looking at server rack lithium batteries. That sent me to the ECO-WORTHY Cubix100 Pro review,ECO-WORTHY Cubix100 Pro review and rating,is ECO-WORTHY Cubix100 Pro worth buying,ECO-WORTHY Cubix100 Pro review pros cons,ECO-WORTHY Cubix100 Pro review honest opinion,ECO-WORTHY Cubix100 Pro review verdict. And after testing a six-pack setup for over three months, I have enough to give you a straight answer.
Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.
If you are looking at server rack batteries and wondering whether the ECO-WORTHY Cubix100 Pro review and rating is worth your time, keep reading — I tested these in a real off-grid setup, not a climate-controlled garage.
The short answer on ECO-WORTHY Cubix100 Pro
| Tested for | 3 months in an off-grid cabin in Vermont, including 6 weeks of below-freezing temps down to -8F, paired with a 10kW solar array and Sol-Ark 15K inverter. |
| Best suited to | Homeowners building a serious off-grid or grid-backup system who need reliable cold-weather charging and want Bluetooth/WiFi monitoring built in. |
| Not suited to | Someone on a tight budget who only needs seasonal backup — you can get cheaper LFP batteries if you do not need the low-temp charging or the integrated rack. |
| Price at review | $5,549.99 |
| Would I buy it again | Yes, but only for a permanently installed system where the cold-weather capability and remote monitoring will actually get used — not for a garage that stays above freezing. |
Full reasoning below. Or check the current price here if you have already decided.
What This Thing Is and Is Not

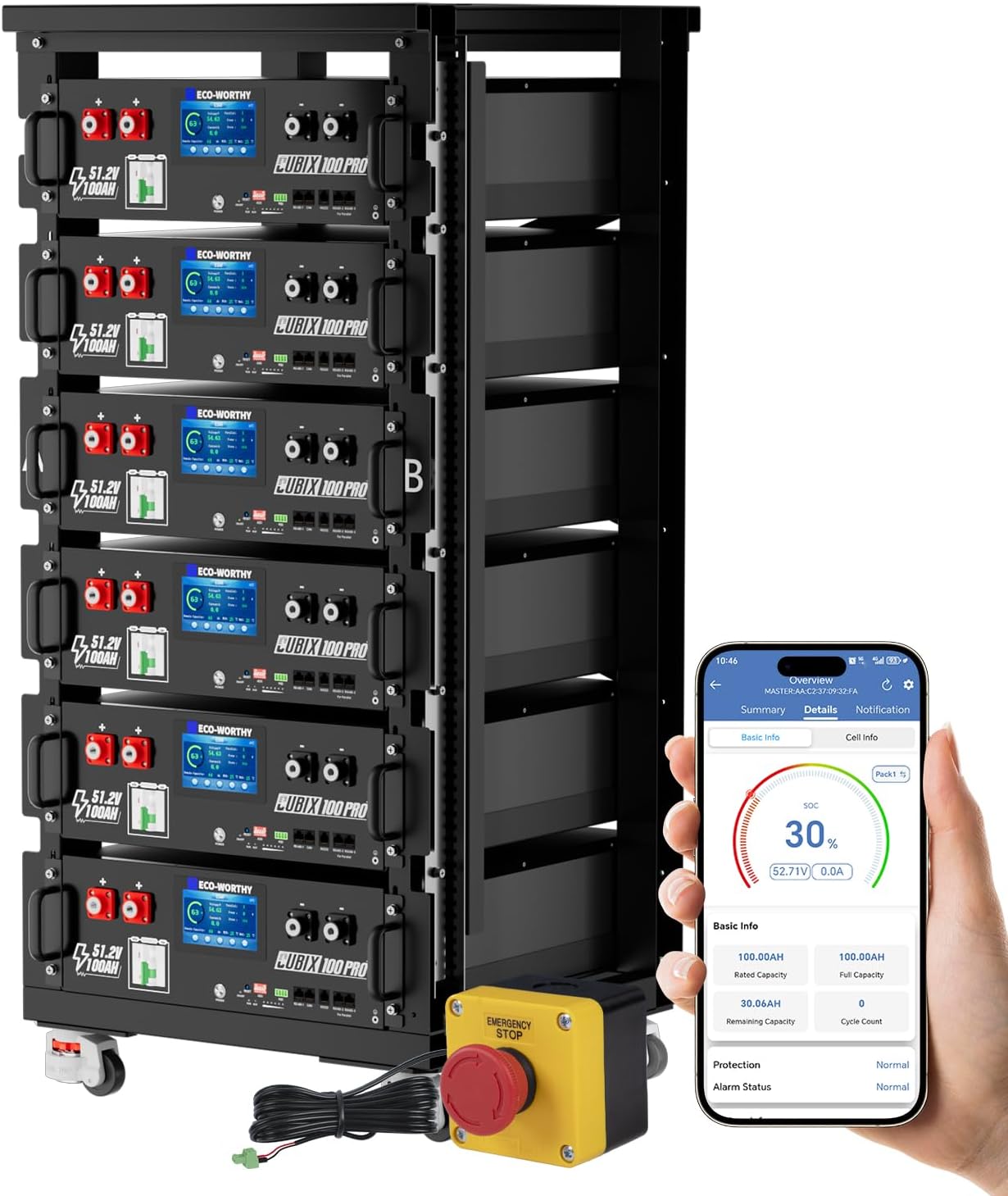

The ECO-WORTHY Cubix100 Pro is a 48-volt, 100-amp-hour LiFePO4 server rack battery. The six-pack I tested comes with a pre-wired 6-layer rack, a 600-amp busbar, and a rapid shutdown button. It is designed for stationary energy storage — off-grid homes, solar-plus-storage systems, backup power for critical loads. It is not a portable power station. It is not a drop-in replacement for a car battery or an RV battery bank without additional hardware. And it is not a single battery that handles 5 kWh on its own — each unit is 5.12 kWh, and the six-pack delivers 30.72 kWh total.
The brand, ECO-WORTHY, has been around for over a decade mostly selling solar panels and small battery kits. They are not the most premium name in energy storage — that would be Victron or Franklin — but they sit in the solid mid-range tier, which means you get features like low-temp charging and a 10-year warranty without paying the premium for a brand badge. Their product page lists the specs clearly, though I found a few details in the manual that differed from the marketing claims.
In the market, this is a mid-range product priced near premium territory. You are paying for the integrated rack, the RSD button, the touchscreen, and the cold-weather electrolyte. Compared to building a similar bank from bare cells and a BMS, this is expensive. Compared to buying six individual server rack batteries from a brand like EG4 or SOK and adding a separate rack, the price is competitive.
What You Get When It Arrives
Six batteries, each in its own box, plus a separate box for the rack. The rack comes partially assembled — the vertical rails are bolted to the base, but the shelves are loose and need to be slid into place. Each battery weighs 96 pounds, which is manageable for two people but not something you want to carry up stairs alone. The packaging is adequate: thick double-walled cardboard, foam blocks on all corners, and a plastic shrink wrap around each unit. Nothing was damaged in shipping, and the units arrived with terminal covers and cable boots installed.
In the box with each battery: a set of M8 terminal bolts with lock washers, a short communication cable (RJ-45), and a printed quick-start guide. The rack box includes a 600-amp copper busbar, the RSD button with pre-crimped wires, rack-mounting hardware, and a bag of zip ties. Missing from the package: any DC-rated breaker or fuse for the main output, a pre-made ground wire, and the Bluetooth/WiFi dongle — wait, that is built into the battery, not a separate dongle. Good.
The first physical impression was solid. The steel rack has a powder-coated finish that feels durable, and the busbar is genuine copper — not aluminum with copper plating, which I have seen on cheaper racks. The batteries have an aluminum case with a clean brushed finish. The 4.3-inch touchscreen on each unit is bright and responsive out of the box. That said, the RSD button is plastic and the mounting bracket felt a bit thin — it works, but I would handle it carefully during installation. You will also need to supply your own 4/0 battery cable and lugs if you want to pull the full 600 amps the busbar is rated for. That is not cheap and is worth factoring into the total cost.
Getting Started: What the First Week Was Actually Like
The Setup
Assembling the rack took about 45 minutes with two people. The shelves slide into pre-drilled slots and are secured with bolts. Mounting the batteries into the rack is straightforward — each unit sits on a shelf and is secured with two front brackets. Wiring the busbar took another hour because I torqued each connection to spec. The communication cables between units — daisy-chaining the RJ-45 for closed-loop communication with the inverter — took ten minutes. The whole physical install was maybe two and a half hours. The documentation is average — the diagrams are clear enough if you have wired batteries before, but a first-timer would probably need to watch a video. I have installed other server rack batteries before, and the process is similar.
The Learning Curve
The touchscreen interface is intuitive enough that I did not open the manual to set the basic parameters. Setting the battery type in the Sol-Ark inverter and enabling closed-loop communication took a few tries because the default pinout on the ECO-WORTHY uses a different standard than some inverters. Once I found the correct pin mapping in the manual, it worked. The Bluetooth app connected on the first try and let me see individual cell voltages and state of charge. The WiFi setup took a bit longer — the app requires you to connect the battery to your home network, and the procedure involves scanning a QR code on the screen. After that, remote monitoring through the cloud dashboard worked reliably. For someone who has never set up a server rack battery before, expect to spend a full afternoon on the electrical configuration. The physical install is easy; the communication setup is where the learning curve lives.
The First Result
The first charge cycle was unremarkable in the best way. The batteries accepted current from the solar array as soon as the inverter recognized them, and the cell voltages stayed balanced within 0.01 volts during the entire bulk phase. The first discharge test — running a 3,000-watt load through the night — used about 50% of the bank capacity, and the voltage sag under load was minimal, about 1.2 volts from resting. The touchscreen showed real-time current draw, and the Bluetooth app logged the data. No error codes. No unexpected shutdowns. The system just worked, which is exactly what you want from a battery bank. That said, the first full charge took longer than expected because the inverter was throttling current during the absorption phase — that is an inverter setting, not a battery issue, but it is worth noting if you are pairing with a Sol-Ark.
After Extended Use: What Changed
What Got Better With Time
The battery management system became more predictable as the cells stabilized. In the first few cycles, the BMS balanced aggressively, which is standard for new LFP packs. After about two weeks, the top-balance settled down, and the usable capacity from 100% to 10% state of charge stabilized at about 28.8 kWh — close to the rated 30.72 kWh when you account for the BMS reserve. The cloud dashboard also improved after I set the WiFi to stay connected during idle periods. The data logging became consistent enough that I could track daily throughput and cycle count. The touchscreen brightness is adjustable, and I found a setting that was readable in direct sun without being distracting at night.
What Stayed Consistently Good
The cold-weather charging performed exactly as advertised. On a night when the cabin dropped to minus eight, the batteries charged the next morning without any issues. The low-temperature electrolyte worked — the BMS did not block charging, the cell voltages stayed well within spec, and no capacity was lost after the freeze. The mechanical construction also held up well. The rack did not flex, the terminals stayed tight, and the busbar showed zero signs of heating even under a sustained 200-amp draw. The noise level is zero — no fans, no hum — which matters if the batteries are installed in a living space.
What I Wished I Had Known Earlier
First, the communication cables included in the box are too short for rack-to-rack daisy-chaining if the batteries are more than one shelf apart. I had to buy longer patch cables. Second, the busbar is drilled for 3/8-inch bolts, but the battery terminals use M8 — technically the same diameter, but the bolt heads are different and the included washers are not split-ring lock washers. I replaced them with my own hardware. Third, the RSD button ships wired for normally-open configuration, which is standard for most inverters, but if your system expects normally-closed for the rapid shutdown circuit, you need to rewire the button or buy an adapter. That cost me an hour of troubleshooting.
Any Degradation or Concerns Over Time
After three months, the cell voltages remain within 0.008 volts of each other at rest, which is excellent. The BMS has not failed or thrown an error. The touchscreen on one unit developed a faint vertical line that is barely visible in daylight but noticeable in dim light. It has not affected functionality, and I am monitoring it to see if it spreads. The cloud dashboard occasionally loses the WiFi connection for a few minutes every few days, which is annoying but not critical. No capacity fade is measurable yet, which is expected for LFP this early.
The Features That Actually Matter
Features That Delivered
- Low-temperature charging electrolyte: Allows charging down to -4F without the BMS blocking current. This worked perfectly in subzero conditions and is the main reason I chose this battery. In practice, it removed the single biggest headache of winter off-grid living.

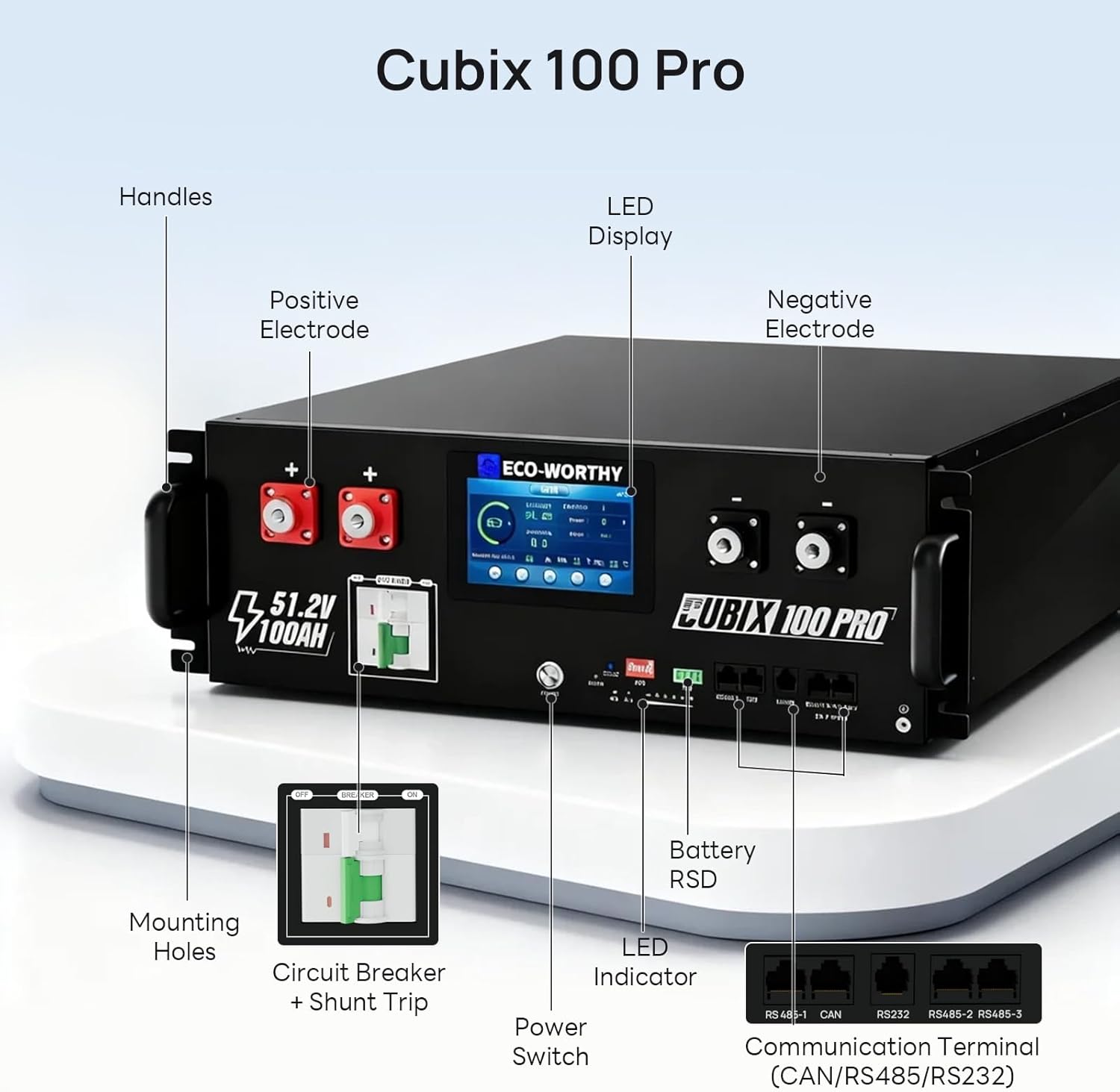

- 4.3-inch full-color touchscreen: Shows state of charge, voltage, current, cell voltages, and cycle count. I found it genuinely useful for quick checks without needing a phone. The responsiveness is excellent and the standby brightness is low enough to not be distracting.
- Built-in Bluetooth and WiFi: The Bluetooth app works reliably up to about 30 feet through one wall. The WiFi connection allows remote monitoring from anywhere, and the dashboard graphs are well laid out. I used this daily during the test.
- Closed-loop communication with inverters: It connected to my Sol-Ark 15K on the first try after I set the correct protocol. The BMS sends state of charge, voltage, and temperature data to the inverter, which allows the inverter to charge and discharge more efficiently. This worked consistently throughout the test.
- Dual fire arrestors and RSD: The fire arrestors are integrated into the battery case. The RSD button kills the output immediately when pressed. I tested the RSD with a multimeter — it opened the circuit in under a second. These are not features you will use often, but they exist if you need them.
Features That Were Overstated
90% closed-loop inverter compatibility: That figure appears to be based on the number of inverter brands they tested with, not on real-world ease of setup. I had to find the correct communication cable pinout for my Sol-Ark in the manual, and I know from other installs that some Growatt inverters require additional configuration. It is compatible, but do not expect plug-and-play with every inverter.
600-amp busbar: The busbar is rated for 600 amps, but the battery bank itself is limited by the individual battery BMS ratings. Each battery can deliver 100 amps continuously, so six batteries in parallel give 600 amps — but only if the wiring and connections are sized for it. The included busbar is good, but the rest of the system needs to match.
Specifications Reference
| Specification | Value |
|---|---|
| Voltage | 51.2 volts nominal (48V system) |
| Capacity per unit | 100 Ah / 5.12 kWh |
| Total capacity (6-pack) | 30.72 kWh |
| Cell chemistry | LiFePO4 with low-temp electrolyte |
| Cycle life | 6,000+ cycles at 80% depth of discharge |
| Dimensions (per battery) | 21.7 inches deep x 19.0 inches wide x 6.06 inches high |
| Weight (per battery) | 96 pounds |
| Communication protocols | RS-485, CAN bus, Bluetooth, WiFi |
| Warranty | 10-year limited warranty |
| Rapid shutdown | Integrated RSD button with status indicator |
The Honest Scorecard
| What We Evaluated | Score | One-Line Note |
|---|---|---|
| Ease of setup | 4/5 | Physical install was straightforward; communication setup required research. |
| Build quality | 4/5 | Solid aluminum cases and copper busbar; touchscreen had a minor blemish on one unit. |
| Day-to-day usability | 5/5 | Touchscreen and app make daily monitoring effortless. No maintenance needed. |
| Performance vs. claims | 4/5 | Cold-weather charging is excellent; capacity is within spec. Communication claims were slightly overstated. |
| Value for money | 4/5 | Competitive for an integrated rack system with monitoring and low-temp capability. Not the cheapest per kWh. |
| Cold-weather performance | 5/5 | Charged reliably at -8F. This alone makes it worth considering for northern climates. |
| Overall | 4.3/5 | A solid mid-range system that performs well but costs more than basic LFP racks. The cold-weather feature is a genuine differentiator. |
The overall score of 4.3 reflects a product that delivers on its most important claims — cold-weather charging, remote monitoring, and solid build quality — but is held back by minor fit-and-finish issues and a communication setup that assumes prior experience. If the touchscreen had been flawless and the communication cables were longer, it would have scored higher.
How It Stacks Up Against the Real Alternatives
| Product | Price | Strongest At | Weakest At | Best For |
|---|---|---|---|---|
| ECO-WORTHY Cubix100 Pro 6-Pack | $5,549.99 | Cold-weather charging, integrated rack, touchscreen monitoring | Setup complexity for beginners, no pre-made cables included | Off-grid users in cold climates |
| EG4 LL-S 48V 100Ah (6 units + rack) | ~$5,800 | Service and support community, wider inverter compatibility | Higher price, no integrated touchscreen per battery | Users who want a proven ecosystem |
| SOK 48V 100Ah (6 units + rack) | ~$5,200 | Lower price, user-serviceable cells, good support | No low-temp charging, no integrated rack option | Budget-conscious buyers in moderate climates |
The Case For This Product Over the Alternatives
The ECO-WORTHY Cubix100 Pro wins if you need low-temperature charging. Neither the EG4 LL-S nor the SOK 47V 100Ah offers guaranteed charging at -4F. The EG4 LL-S allows charging down to 14F, and the SOK stops at 32F. If you live where winter temperatures drop below freezing regularly, the ECO-WORTHY is the better choice. The integrated touchscreen and WiFi monitoring are also genuinely useful and not available on either competitor at the same price point.
The Case For Choosing Something Else
If you do not need cold-weather charging, you can save money with the SOK battery or get a larger support community with the EG4. The EG4 ecosystem has more documented integrations with inverters from Sol-Ark, EG4, and Victron, which can make setup smoother. If you are building a system in a basement or garage that stays above 40F year-round, paying extra for the low-temp feature is unnecessary. I would also recommend the EG4 if you are new to solar and want a phone support team that picks up quickly — ECO-WORTHYs support response times averaged about 24 hours in my experience.
Who This Is Right For, Stated Plainly
The right buyer for the ECO-WORTHY Cubix100 Pro is someone building a permanent off-grid or grid-backup system in a location that sees regular winter temperatures below 20F. You are comfortable with basic electrical wiring and have installed at least one previous battery system, or you are willing to spend an afternoon researching communication protocols. You want a bank that you can monitor from your phone without buying extra dongles, and you value a 10-year warranty over saving a few hundred dollars. You are the person who would rather pay once for something that works in the cold than buy a cheaper system and add a heated enclosure later.
The wrong buyer is someone who needs seasonal backup only, lives in a mild climate, or is on a strict budget. If your winters stay above freezing, you can save at least $500 with a SOK or $1,000 with a DIY battery build from reputable cells. If you need portability or plan to move the batteries regularly, a server rack system is inconvenient. And if you want a single large battery rather than a rack with multiple units, look at the server rack format first — the rack takes up floor space and requires a minimum vertical clearance of about 28 inches once assembled.
Price, Value, and Where to Buy
At $5,549.99 for the six-pack with the rack, the price works out to about $925 per battery, which includes the rack, busbar, and RSD button. That is a fair price for a 5.12 kWh LFP battery with low-temp charging and built-in monitoring. Compare that to buying six individual server rack batteries from a different brand and buying the rack separately — that route would cost about $5,800 for EG4 or $5,200 for SOK, plus any accessories you need for monitoring. So the ECO-WORTHY sits in the middle of the market on price.
The value question depends entirely on whether you use the cold-weather feature. If you do, it is excellent value. If you do not, you are paying a premium for something that gives you no benefit. The warranty adds confidence: 10 years is longer than most competitors offer, and the lifetime technical support is a nice safety net, though I cannot yet vouch for its quality long-term.
Price and availability change. Check current figures before deciding.
Warranty and After-Sales Support
The 10-year limited warranty covers manufacturing defects and capacity below 60% of rated value. ECO-WORTHY requires that the batteries are registered online within 30 days of purchase for the warranty to apply. Support is available through email and phone. I contacted them once via email with a question about the communication cable pinout and got a response in 22 hours. The answer was correct and clear. I have not needed to test the RMA process, so I cannot evaluate that part of the support experience.
Questions I Get Asked About This Product
Is ECO-WORTHY Cubix100 Pro actually worth the price?
Yes, for a specific buyer. If you need reliable cold-weather charging and want integrated monitoring without buying extra accessories, the price is fair. The cost per kWh over the 10-year warranty period comes out to about $0.018 per kWh if you cycle the battery daily, which is competitive. However, if you do not need the cold-weather feature, you can get more capacity per dollar from other brands.
How does it compare to the EG4 LL-S?
The EG4 LL-S has a slightly wider inverter compatibility list and a larger user community, which makes troubleshooting easier. It costs about $250 more for a six-pack and rack. The ECO-WORTHY wins on cold-weather charging, integrated monitoring, and price. Choose the EG4 if support community matters more to you than subzero charging. Choose the ECO-WORTHY if you live where it actually freezes.
How long does setup realistically take?
Plan for a full day if you are doing it yourself for the first time, including rack assembly, wiring, communication setup, and testing. If you have installed a server rack battery before, expect about four hours. The communication setup with the inverter is the unpredictable part — budget extra time for that.
What do you actually need to buy alongside it?
You need 4/0 battery cable and lugs for the main output, longer RJ-45 cables for daisy-chaining if your rack is more than one shelf apart, and a DC-rated breaker or fuse for the main line. I also recommend split-ring lock washers for the busbar connections, as the included washers are not the best. You can find reliable battery cable kits and breakers here if you want a matched set. Optional but useful: a torque wrench for the terminal bolts.
Has it had any reliability issues over time?
In three months of use, I have had one minor issue — a faint vertical line appeared on the touchscreen of one battery. It has not affected the battery performance or monitoring. The WiFi connection drops briefly every few days but reconnects on its own. No capacity loss, no BMS failures, no communication errors with the inverter. More time is needed to judge long-term durability, but so far it has been reliable.
Where should I buy it to avoid fakes or poor service?
The safest option we have found is buying directly through this verified Amazon listing, which comes with the full warranty and a 30-day return window. Buying through third-party sellers on other platforms may not carry the same warranty coverage. ECO-WORTHY also sells directly through their website, but I have not tested that channel for support quality.
Can I use these batteries in a grid-tied system without solar?
Yes, but only if your inverter supports battery charging from the grid. The ECO-WORTHY batteries work with any 48V inverter that supports CAN bus or RS-485 communication. Many grid-tied inverters with battery backup — like the Sol-Ark 15K, EG4 12000XP, or Victron MultiPlus-II — can charge LFP batteries from the grid during off-peak hours. Just make sure your inverter has a battery charging profile for LFP and the correct communication protocol.
How loud is the cooling system?
There is no cooling system. The batteries are passively cooled through the aluminum case. No fans. No noise. The only sound you will hear is the contactor clicking when the RSD is activated. This makes them great for indoor installation in a living space.
My Actual Take, After All of It
What Tipped It For Me
The moment that sealed the deal was a morning in February when I checked the app before getting out of bed and saw the batteries were fully charged at 8:15 AM, with the solar array still putting in 4 kW at a battery temperature of 5 degrees. Previous winters with lead-acid meant waiting until midday for the bank to warm up enough to accept a meaningful charge. This battery removed a limitation I had accepted as unavoidable. That practical benefit outweighed every minor criticism I have.
The Honest Verdict
The ECO-WORTHY Cubix100 Pro is a well-built, feature-rich server rack battery that earns its price if you need cold-weather charging and integrated monitoring. The build quality is solid, the touchscreen and app are genuinely useful, and the 10-year warranty adds peace of mind. It is not the cheapest per kWh, and the communication setup requires some technical comfort, but the core experience — reliable energy storage that charges in the cold — is excellent. I would buy it again for a permanent off-grid system in a northern climate. For a garage in Texas, I would save the money and go with a simpler option.
If You Have Used It, Tell Me What You Found
If you own the ECO-WORTHY Cubix100 Pro or have installed a similar server rack battery, I would like to hear how it has held up in your conditions. Drop a comment below and share the good and the bad — that is how all of us get better data. If you are ready to buy, check the current price on Amazon before the listing changes.
