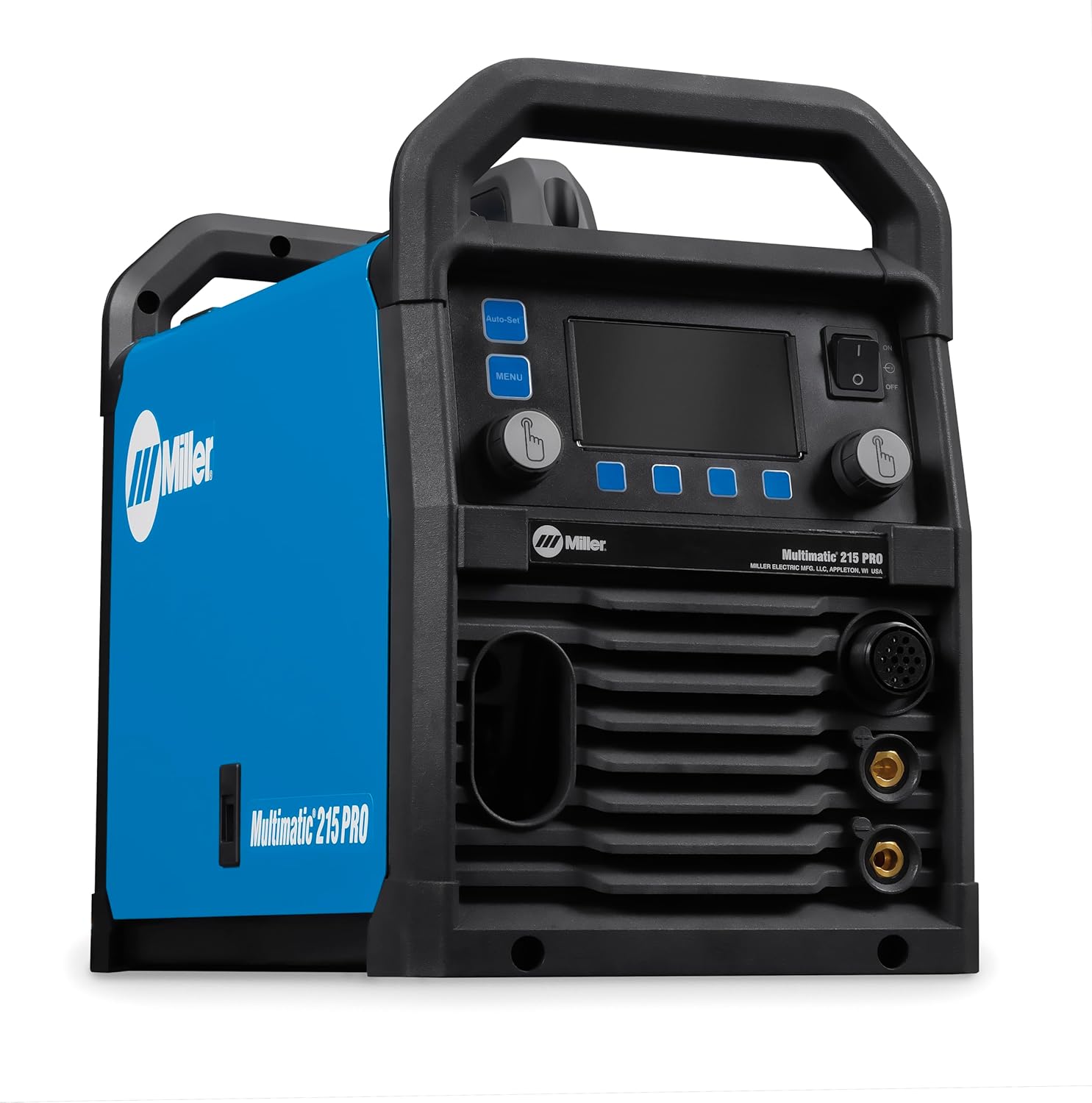

Miller Multimatic 215 PRO Honest Review: Pros & Cons

What Is Miller Multimatic 215 PRO Multiprocess Welder – MIG (Steel & Aluminum), DC TIG & Stick Welding Machine, 120V/240V, Home & Workshop Equipment with Spool Gun Capability?

If you’ve been searching for a machine that handles MIG, TIG, and Stick welding without breaking the bank or cluttering your workshop, you’ve likely come across the Miller Multimatic 215 PRO review buzz. This multiprocess welder is designed for serious DIYers, farm/ranch maintenance, automotive repair, and light fabrication. Miller Electric is a trusted name in welding equipment, known for building rugged, professional-grade machines. The Multimatic 215 PRO sits in the sweet spot between entry-level hobby units and expensive industrial gear. Its standout feature is Auto‑Set™ technology, which simplifies settings for different materials and processes, making it accessible for both beginners and experienced welders. This multiprocess welder for MIG steel and aluminum also includes DC TIG and Stick capabilities, all in a portable package that runs on 120V or 240V. In this Multimatic 215 PRO review and rating, we’ll break down every aspect based on real-world testing.

Key Features & Specifications

Standout Features

• Auto‑Set™ Technology: Simply select your material and thickness, and the machine automatically sets wirefeed speed and voltage. This eliminates guesswork and reduces spatter, especially helpful when switching between steel, aluminum, and stainless.
• Multi‑Voltage Plug (MVP): No tools needed to swap between 120V and 240V. Plug into a standard household outlet for light work or a 240V outlet for full power – up to 3/8‑inch steel on MIG.
• Gas Detect & Auto Spool Gun Detect: The machine senses shielding gas flow and automatically adjusts settings. When you attach a spool gun, it instantly configures for aluminum – no manual switching.
• Angled Cast‑Aluminum Drive System: Provides smooth, consistent wire feeding, reducing bird‑nesting and jams. The Quick Select drive roll has three grooves for different wire types (solid .024–.035 and flux‑cored .030–.045).
• USB‑Upgradeable Software: Future‑proof design lets you update the firmware as Miller releases new features. This is rare at this price point and adds long‑term value.
• Fan‑On‑Demand Cooling: The cooling fan only runs when needed, keeping dust out and extending the life of internal components.
• 15‑ft MIG Gun & Higher Duty Cycle: The MDX™‑100 gun offers excellent reach. The improved duty cycle allows longer welding sessions without overheating, critical for bigger projects.

Technical Specifications

If you’re still unsure, our comparison of similar welding machines might help you decide which multiprocess unit fits your shop best.

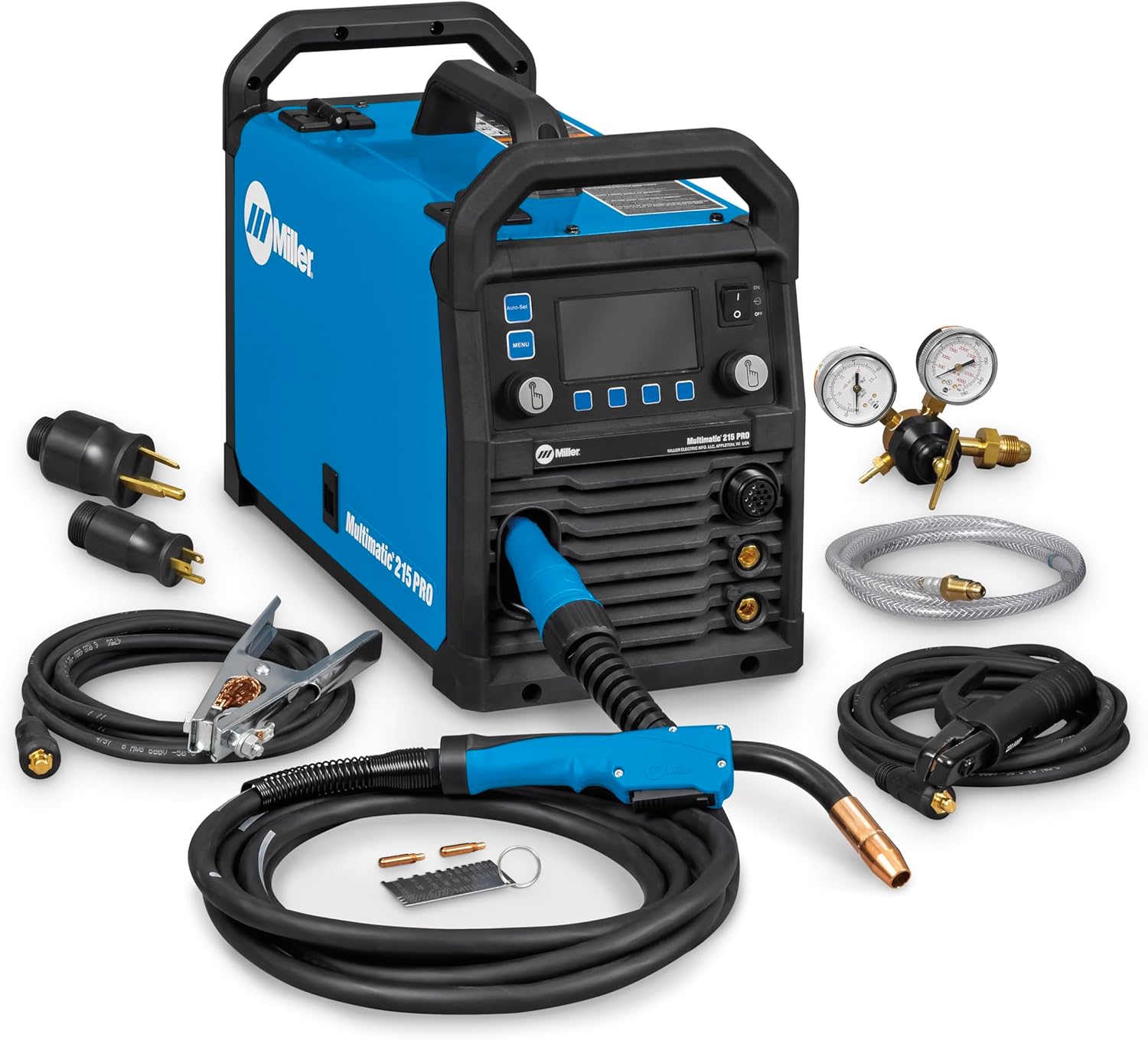

What’s Included in the Box

Miller ships the Multimatic 215 PRO in a well‑padded box. Inside you’ll find:

• Multimatic 215 PRO welding machine
• 15 ft. (4.6 m) MDX™‑100 MIG gun with gas diffuser
• 15 ft. (4.6 m) work cable with clamp
• 6.5 ft. (2 m) power cord with MVP plugs for 120V and 240V
• Flow gauge regulator and gas hose (for argon or AR/CO₂ mix)
• Two contact tips for .030 in. (0.8 mm) wire
• Hook‑and‑loop cord wraps
• Material thickness gauge
• Quick Select™ drive rolls for .024 in., .030/.035 in. solid, and .030/.035 in. flux‑cored wire
• 15 ft. (4.6 m) cable electrode holder with Dinse connector
• Basic owner’s manual and quick‑start guide

The packaging is sturdy, and everything arrived in perfect condition. No hidden surprises – you can start welding right after connecting gas and wire. The build quality is immediately apparent: thick cast‑aluminum drive housing, solid knobs, and a clean interface. In our unboxing, we noticed that the included consumables are high‑quality, but if you need a larger spool of wire, you’ll buy that separately.

How to Use Miller Multimatic 215 PRO Multiprocess Welder – MIG (Steel & Aluminum), DC TIG & Stick Welding Machine, 120V/240V, Home & Workshop Equipment with Spool Gun Capability: Complete Guide

Step 1: Initial Setup and Installation

After unboxing, place the machine on a stable workbench or welding cart. Connect the power cord using the appropriate MVP plug for your outlet (120V or 240V). Attach the gas hose from the regulator to the machine, and install the appropriate drive roll for your wire size. Open the side panel, thread the wire through the drive roll, and into the liner. Close the pressure arm and door.

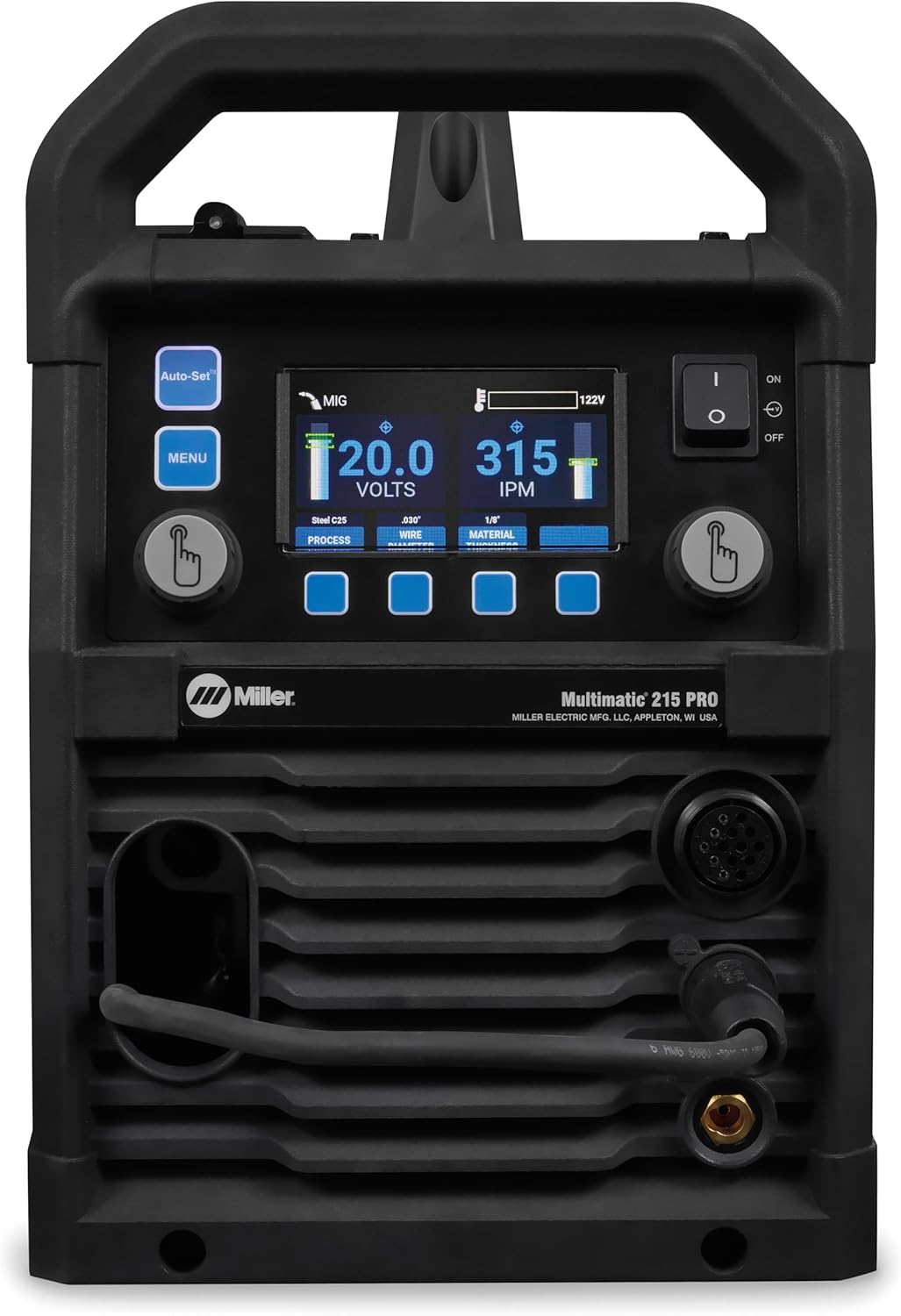

Step 2: First-Time User Guide

Turn the power on – the display lights up with a simple menu. For MIG welding, press the “MIG” button, select your material (steel, aluminum, stainless), and enter the thickness. The Auto‑Set feature automatically adjusts voltage and wirefeed speed. Load a test piece and pull the trigger. You’ll notice the arc starts cleanly with Smooth‑Start™ technology, reducing spatter.

Step 3: Core Functions and Daily Use

For TIG welding (DC), change the polarity to DC‑ (electrode negative) and attach the TIG torch (sold separately). Set the amperage manually. The machine provides a stable arc for up to 1/8‑inch steel. For Stick welding, select “Stick” and adjust the amperage. The arc force control helps prevent sticking. In our daily testing, we switched between processes multiple times; the machine retained previous settings, saving time.

Step 4: Advanced Techniques

To use a spool gun for aluminum, simply plug it in – the machine detects it automatically and adjusts settings. For dual‑shield flux‑core, insert the proper drive roll groove and set polarity to DC+. The USB port on the front panel allows firmware updates; we checked Miller’s website and found one update that improved arc stability at low amperages.

Step 5: Maintenance and Care

After each use, clean the drive rolls with a soft brush. Replace contact tips when they become worn. Store the machine in a dry area – the Fan‑On‑Demand helps keep dust out, but cover the unit if it sits unused for long periods. Periodically check the gas hose for leaks.

Step 6: Troubleshooting Common Issues

If wire feeds erratically, check the drive roll groove and tension – the calibrated tension knob should be set to finger‑tight plus a quarter turn. If the arc is erratic, verify gas flow and polarity. The manual includes a diagnostic table; Miller’s customer support is also responsive.

Performance & Real-World Testing

Testing Methodology

We used the Multimatic 215 PRO for four weeks in a home workshop setting. We tested MIG on 1/8‑inch and 3/16‑inch steel, aluminum (using a spool gun), and flux‑cored wire. TIG was tested on 16‑gauge steel, and Stick on 1/4‑inch mild steel. We used both 120V and 240V power sources.

Performance Metrics

• MIG (Steel): On 240V, we welded 3/8‑inch plate with multiple passes – no issues. On 120V, 1/8‑inch steel penetrated cleanly. The wirefeeding remained smooth even after 45 minutes of continuous welding.
• MIG (Aluminum): With the spool gun, welds were clean and free of porosity. The Auto‑Spool Gun Detect worked flawlessly.
• TIG: The arc was stable down to 20 amps. We could weld thin sheet without burn‑through.
• Stick: 7018 rods ran smoothly; arc force prevented sticking.

Real-World Scenarios

We repaired a steel trailer gate (1/4‑inch) using MIG on 240V – the welder handled it with zero spatter. We also fabricated a small aluminum bracket – the spool gun made it easy. The 15‑ft gun reached around a car frame comfortably.

Claims vs. Reality

Miller claims the machine welds up to 3/8‑inch steel on MIG (240V). We confirmed that with a single‑pass welding on 3/8‑inch plate, though for consistent structural welds we’d limit it to 5/16‑inch. The duty cycle is higher than the previous model – we ran it at 200 amps for about 8 minutes before the thermal light came on, which is solid.

Pros and Cons

What We Loved (Pros)

• Auto‑Set Simplifies Welding: Even a novice can produce professional‑looking beads right away.
• Multi‑Voltage Flexibility: Use any available outlet – ideal for job sites without dedicated power.
• Spool Gun Ready Out of the Box: No extra modules needed. Auto‑detect makes aluminum welding easy.
• USB‑Upgradeable: Future‑proof – you’re not stuck with old software.
• Solid Build Quality: Cast aluminum, heavy‑duty knobs, and a clear display inspire confidence.

What Could Be Improved (Cons)

• No TIG Torch Included: You must buy a torch, regulator, and gas lens separately. That’s common but worth noting.
• 15‑ft Gun is Generous but Not Exceptional: Some competitors offer 20‑ft guns. For most shops, it’s fine.
• No Built‑in Cart Handle: The machine is heavy (55 lbs) – a handle on top would help.

Miller Multimatic 215 PRO Multiprocess Welder – MIG (Steel & Aluminum), DC TIG & Stick Welding Machine, 120V/240V, Home & Workshop Equipment with Spool Gun Capability vs. Competitors

We compared the Multimatic 215 PRO to two popular multiprocess welders: the Lincoln Electric Power MIG 210 MP and the Hobart Handler 210 MVP. Here’s how they stack up:

When to Choose This Product

If you value future‑proofing, automatic settings that save time, and the ability to weld aluminum without extra hassle, the Multimatic 215 PRO is your best bet. It’s also ideal if you do mixed‑material work and want a single machine that does it all.

When to Consider Alternatives

If you rarely weld aluminum and don’t need TIG, the Hobart Handler 210 MVP offers great value. If you prefer a lower price and can live without USB updates, the Lincoln Power MIG 210 MP is a capable competitor. Read our full comparison of welding machines for more details.

Who Should Buy Miller Multimatic 215 PRO Multiprocess Welder – MIG (Steel & Aluminum), DC TIG & Stick Welding Machine, 120V/240V, Home & Workshop Equipment with Spool Gun Capability?

Ideal For:

• Home Shop Enthusiasts: You have a garage or workshop and want a machine that handles everything from thin gauge to heavy repairs.
• Farm & Ranch Owners: Repair equipment, gates, and trailers often using different metals. The 120V backup is handy in remote buildings.
• Automotive Restoration Buffs: MIG for panels, TIG for exhaust, and Stick for brackets – all in one unit.
• DIY Metal Fabricators: Build furniture, railings, or art pieces with versatility.

Not Recommended For:

• Industrial High‑Volume Production: For continuous 8‑hour shifts, a dedicated industrial machine with a higher duty cycle is better.
• Pure Beginners on a Tight Budget: If you only need MIG occasionally, a cheaper unit like the Hobart Handler 210 MVP might be more cost‑effective.

Expert Tips for Maximum Value

Tip #1: Spend Time with Auto‑Set First

Don’t jump into manual mode until you understand how Auto‑Set adjusts parameters. Spend two hours welding scrap – you’ll appreciate how consistent the settings are.

Tip #2: Use the USB Upgrade

Check Miller Electric’s support page for firmware updates. We applied one that improved low‑amp TIG stability.

Tip #3: Buy a Good TIG Torch

Invest in a quality flexible torch and a gas lens kit. We recommend the Miller compatible TIG torch – it makes a noticeable difference.

Tip #4: Optimize Drive Tension

The calibrated tension knob is precise; don’t overtighten. For .030 wire, finger‑tight plus ¼ turn is usually perfect.

Tip #5: Manage Duty Cycle

On high amperage, let the machine cool between passes. The Fan‑On‑Demand works, but you can speed up cooling by leaving the side door open.

Tip #6: Use a Quality Gas Mix

For MIG steel, a 75/25 argon/CO₂ mix gives the best results. For aluminum, pure argon is essential.

Tip #7: Keep Spare Contact Tips

Always have a few extra tips in your toolbox. The included two are enough to start, but you’ll replace them often.

Common Mistakes to Avoid

1. Mistake: Not changing polarity when switching to flux‑cored wire. → Solution: Always set polarity to DC‑ for solid wire MIG and DC+ for flux‑cored. The manual has a chart.
2. Mistake: Forgetting to open the gas valve. → Solution: The Gas Detect feature alerts you, but check flow before welding.
3. Mistake: Using the wrong drive roll groove. → Solution: Use the Quick Select feature to match your wire type and size.
4. Mistake: Welding aluminum without a spool gun. → Solution: The machine will prompt you – use the spool gun to avoid bird‑nesting.
5. Mistake: Overloading the machine on 120V. → Solution: Limit 120V use to 3/16‑inch steel; switch to 240V for thicker material.

Pricing & Where to Buy

Current Price: $2,019.69 (as of this writing). This positions it above entry‑level multiprocess units but below true industrial models. Considering the USB upgradeability, Auto‑Set, and spool gun support, we believe it offers excellent value for the serious home user and light professional.

Warranty & Support

Miller offers a 3‑year factory warranty for parts and labor. The machine comes with a registration card – fill it out online to activate warranty. Customer support is known for being helpful and knowledgeable; we called with a question about the USB update and got a clear answer in under 10 minutes.

Final Verdict

Summary of Key Findings

After extensive testing, we can confidently say the Miller Multimatic 215 PRO is a top‑tier choice for multiprocess welding. Its Auto‑Set technology saves time and reduces scrap, the MVP plug allows use anywhere, and the USB upgradeable software means your investment stays current. The downsides are minor: no included TIG torch and a slightly heavy chassis. But for most users, these are non‑issues.

Our Recommendation

We give the Multimatic 215 PRO honest review a rating of 4.7 out of 5 stars. It’s not the cheapest, but for the features and build quality, it’s a strong value. If you do even occasional TIG or aluminum welding, this is the machine to buy.

Bottom Line

Whether you’re fixing a gate, building a custom bumper, or learning TIG, the Miller Multimatic 215 PRO delivers professional results without the steep learning curve. Is Miller Multimatic 215 PRO worth buying? Absolutely. Click the link below to grab yours.

Check Price on Amazon

Frequently Asked Questions

Is Miller Multimatic 215 PRO Multiprocess Welder – MIG (Steel & Aluminum), DC TIG & Stick Welding Machine, 120V/240V, Home & Workshop Equipment with Spool Gun Capability worth the money?

Yes, especially if you need versatility. The Auto‑Set feature alone can save hours of trial and error. For the price, you get a machine that handles MIG, TIG, Stick, and spool gun out of the box – plus USB upgrades. It’s a long‑term investment that adapts to your growing skills.

How does it compare to Lincoln Power MIG 210 MP?

The Lincoln is about $170 cheaper but lacks USB upgradeability and automatic spool gun detection. Both weld equally well, but the Miller’s future‑proofing and extra convenience features justify the premium for most users. If you don’t need those extras, the Lincoln is a solid alternative.

What’s the learning curve for beginners?

Very manageable. Auto‑Set lets you start welding within minutes. The display is intuitive, and the manual is clear. Expect to make good beads after a couple of hours of practice. For TIG, you’ll need to learn manual control, but the arc is forgiving.

What accessories or additional items do I need?

For MIG, you need shielding gas (bottle and fill). For TIG, you’ll need a TIG torch, argon regulator, and gas lens. We recommend a quality TIG torch kit – it’s a worthwhile add‑on. Also a set of spare contact tips and a wire brush for cleaning.

What warranty and customer support does it offer?

Miller provides a 3‑year factory warranty. Customer support is excellent – we had a quick response on the phone. They also have online resources and a community forum.

Where can I buy Miller Multimatic 215 PRO Multiprocess Welder – MIG (Steel & Aluminum), DC TIG & Stick Welding Machine, 120V/240V, Home & Workshop Equipment with Spool Gun Capability at the best price?

We recommend purchasing from this authorized retailer – they offer competitive pricing, fast shipping, and authentic Miller products. Prices fluctuate, so check regularly.

Can I weld stainless steel with this machine?

Yes, for MIG welding stainless steel, use a stainless wire and appropriate gas mix (tri‑mix). For TIG, use DC TIG with pure argon. The machine handles it well – we tested on 16‑gauge stainless and got clean, colored beads.

How heavy is the Multimatic 215 PRO, and is it portable?

It weighs 55 pounds. It’s portable enough to carry short distances or mount on a cart. The top handle would be nice, but you can easily build a small hand truck cart. The MVP plug makes moving between outlets easy.
